Clean Lines. Subtle Strength.
Horizontal Cable
Our horizontal cable railing systems offer a modern, streamlined alternative to traditional balustrades, combining durability, openness, and architectural precision. Designed for both residential and commercial environments, these systems create visual continuity while maintaining defined boundaries and safety.
We supply complete horizontal cable railing systems and components, suitable for indoor and outdoor applications.
Product Overview
- Unobstructed Views: Low-profile horizontal stainless steel cables preserve your scenery without compromising safety.
- Fast, Precise Installation: Panels arrive pre-strung and tension-ready, reducing setup time and jobsite labor.
- All-Aluminum Frame: Rust-free, powder-coated components designed to handle harsh environments.
- Two Configurations: Choose from Full Frame (top & bottom rails) or minimalist Top Rail Only.
- Certified for Safety: ICC-ES AC273 compliant for both IRC and IBC building codes.
Details & Specifications
Our Cable Railing system is strong enough for commercial applications with residential elegance
Material & Finish
- 6000-series extruded aluminum
- Architectural-grade powder coat (AAMA 2604 compliant)
- Cables: 316 stainless steel, factory-installed
- Colors: Black, White, Bronze (Tuxedo and Piano available by special order)
Cable Specs
- 36in height: 9 horizontal cables
- 42in height: 11 horizontal cables
- Cable lengths available from 5ft to 60ft (in 5ft increments)
Top Rail Profiles
- Alta (streamlined, rounded profile)
- Victorian (more traditional styling)
- Drink rail add-on compatible
Installation
- Quick-lock assembly with minimal tools
- Cable toolkits available: threading, cutting, tension gauge
Warranty
- 20-Year limited warranty on finish and manufacturing defects
- 20-Year limited warranty on finish and manufacturing defects

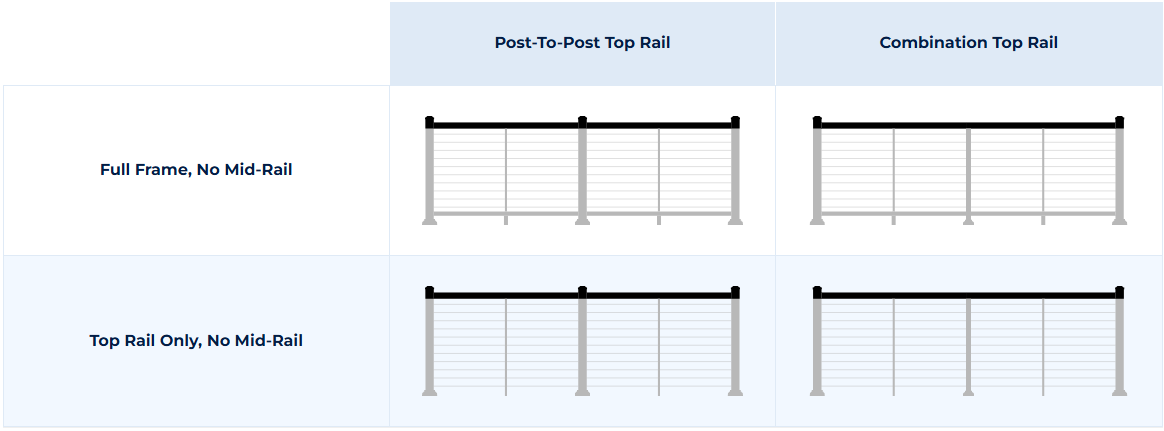

System Types
- Full Frame: Top + bottom rails with intermediate posts
- Top Rail Only: Sleek profile with open bottom and fewer components
Panel Dimensions
- Standard widths: 6ft and 8ft
- Heights: 36in and 42in
- Max post-to-post span: 8ft using 3in posts
- Intermediate posts required based on layout
Posts & Mounting
- 2in or 3in aluminum posts
- Surface, fascia, and Juliet mount options
- Extended post tubes available for fascia applications
Performance & Compliance
- Engineered and certified to ICC-ES AC273
- Exceeds 200lb (IRC) and 50lb (IBC) structural load requirements
- Suitable for decks, balconies, rooftop amenities, and stair runs
Applications
Horizontal cable railing systems are commonly used for:
Residential balconies and terraces
Staircases and mezzanines
Commercial buildings and offices
Outdoor decks and walkways
Get In Touch
Why Choose Horizontal Cable Railings
Modern, architectural aesthetic
Durable, low-maintenance materials
Flexible system configurations
Suitable for residential and commercial projects
Supplied with specification-ready components
